*Please note - spec applies to all sizes unless listed separately
| *Frame | Size:Â XS

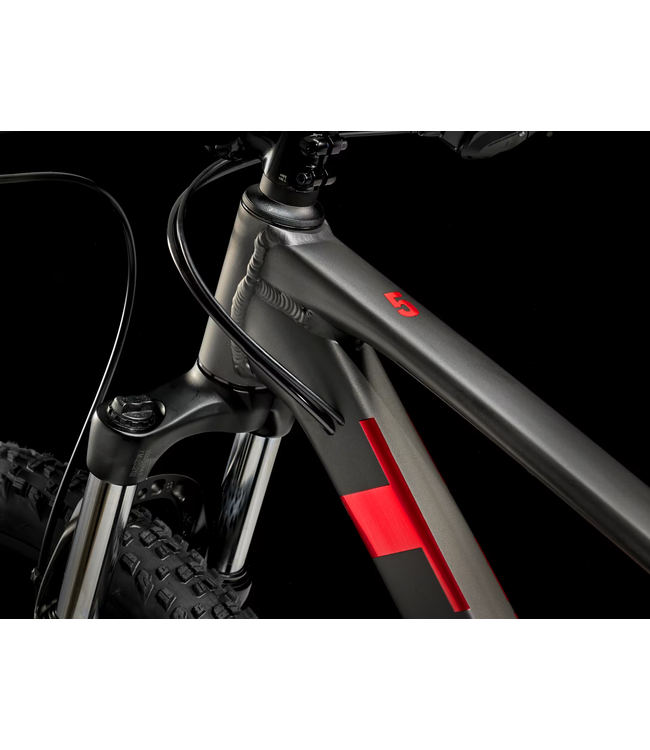

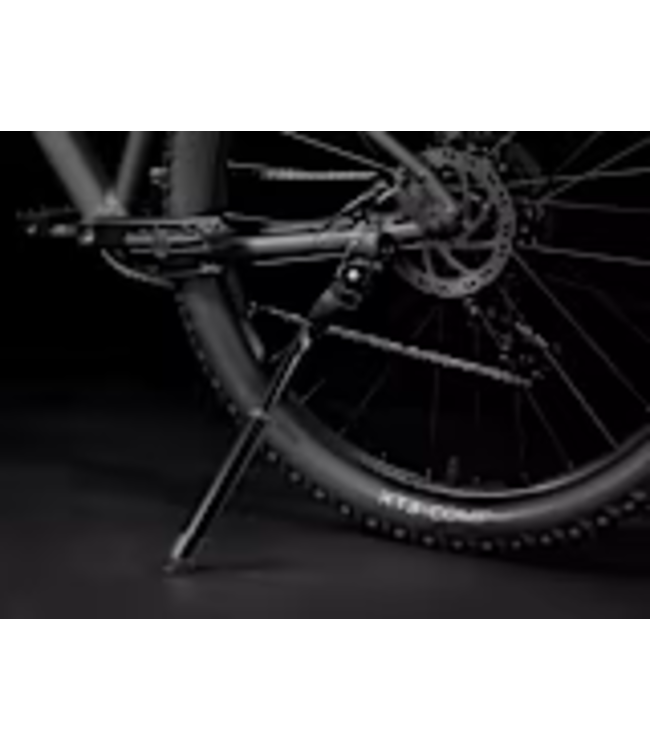

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
|
|---|---|
| Size:Â ML , M , L , S , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
|
|

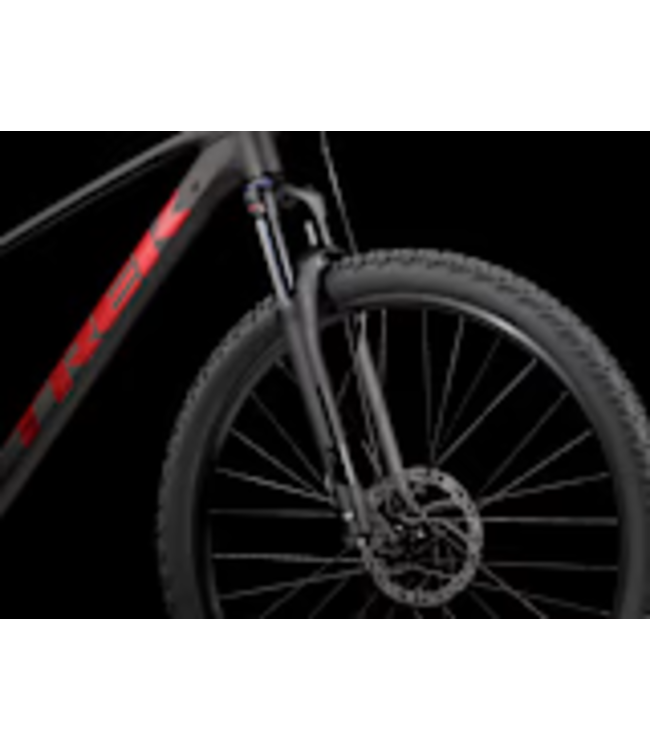

| *Fork | Size:Â XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
|
| Size:Â S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
|
|
| Size:Â ML , M , L , XL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
|
| *Front Hub | Size:Â ML , M , XS , L , S , XL
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
|
|---|---|
| *Rear Hub | Size:Â ML , M , XS , L , S , XL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
| *Rear Skewer | Size:Â ML , M , XS , L , S , XL173x5mm QR |
| *Rim | Size:Â ML , M , XS , L , S , XL
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
|
| *Spokes | Size:Â ML , M , XS , L , S , XL
14g stainless steel, black
|

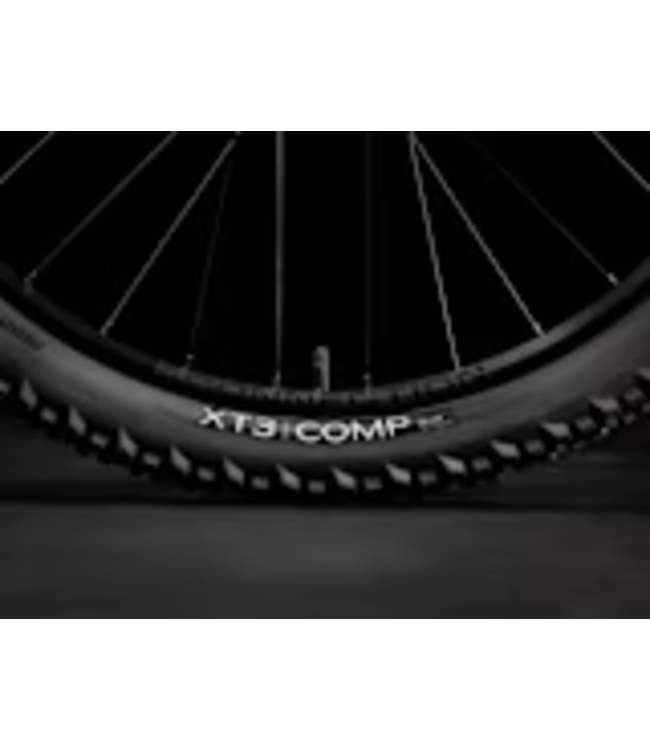

| *Tire | Size:Â XS , SBontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' |
| Size:Â ML , M , L , XLBontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' | |
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| *Shifter | Size:Â ML , M , XS , L , S , XL
Shimano U4000, 9 speed
|
|---|---|

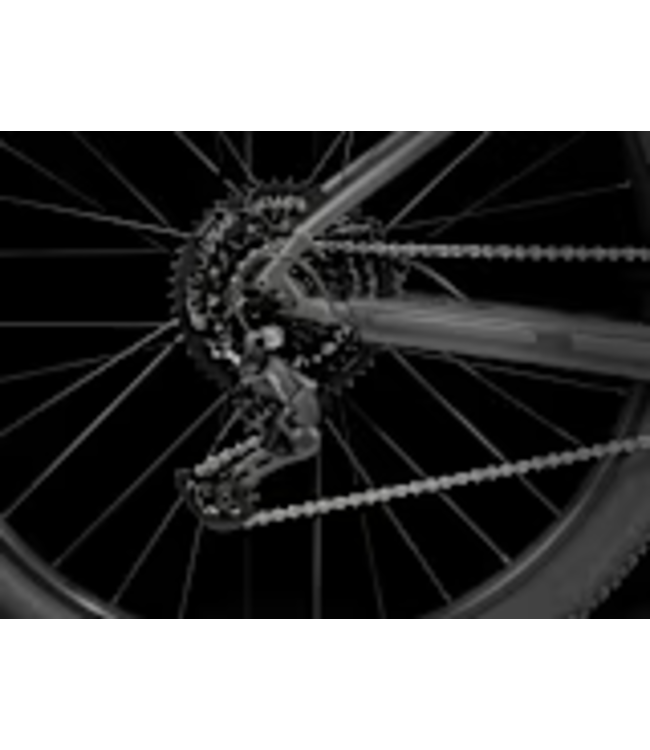

| *Rear Derailleur | Size:Â ML , M , XS , L , S , XL
Shimano CUES U4000
|

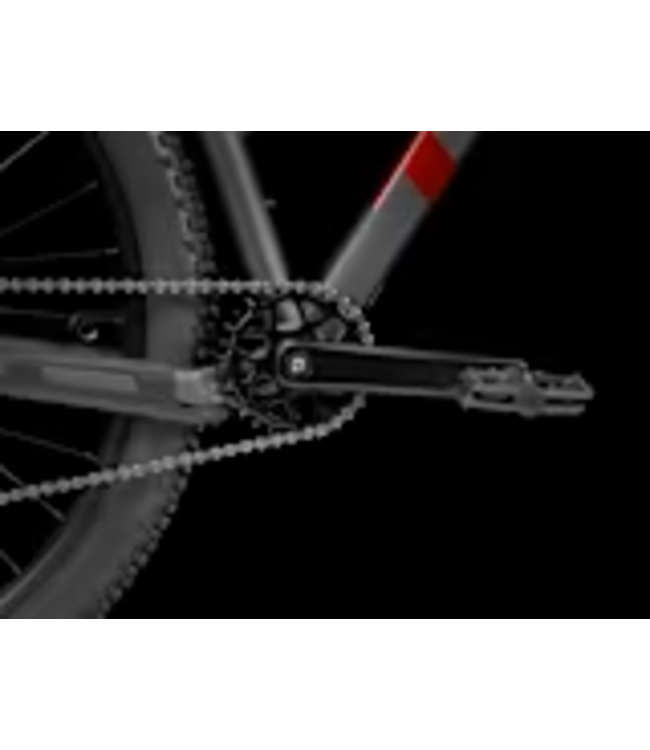

| *Crank | Size:Â XS
Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
|
| Size:Â ML , M , S
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
|
|
| Size:Â L , XL
Prowheel C10Y-NW, 30T steel narrow-wide ring, 175 mm length
|
|
| *Bottom Bracket | Size:Â ML , M , XS , L , S , XL
VP BC73, 73mm, threaded cartridge
|
| *Cassette | Size:Â ML , M , XS , L , S , XL
Shimano LINKGLIDE LG300, 11-46, 9 speed
|

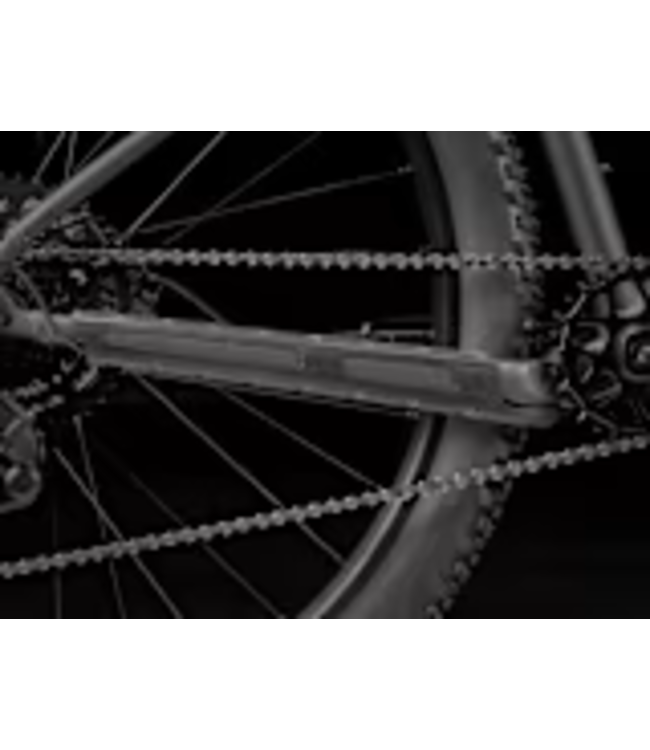

| *Chain | Size:Â ML , M , XS , L , S , XL
Shimano LG500
|
| *Pedal | Size:Â ML , M , XS , L , S , XLVP-536 nylon platform |
| Max chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| *Seatpost | Size:Â M , XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
|
|---|---|
| Size:Â ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|
|
| *Handlebar | Size:Â XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
|
| Size:Â S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
|
|
| Size:Â ML , M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
|
|
| *Grips | Size:Â ML , M , XS , L , S , XLBontrager XR Trail Comp, nylon lock-on |
| *Stem | Size:Â XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
|
| Size:Â ML , M , LBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
| Size:Â XLBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
| *Headset | Size:Â ML , M , XS , L , S , XL
Semi-integrated, 1-1/8"
|

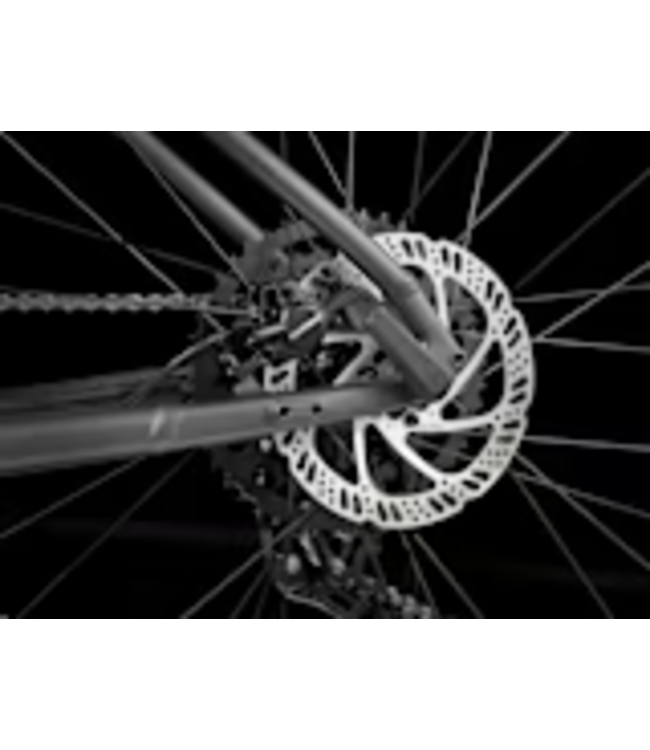

| *Brake Rotor | Size:Â ML , M , XS , L , S , XL
Tektro, 6-bolt, 160mm
|
| *Brake Set | Size:Â XS , STektro HD-M276 hydraulic disc, short reach |
| Size:Â ML , M , L , XLTektro HD-M275 hydraulic disc | |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
