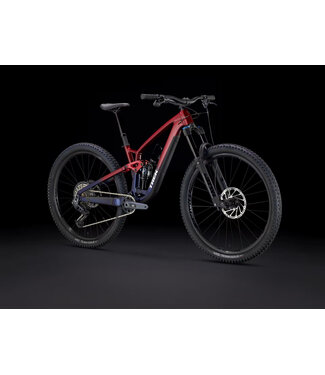

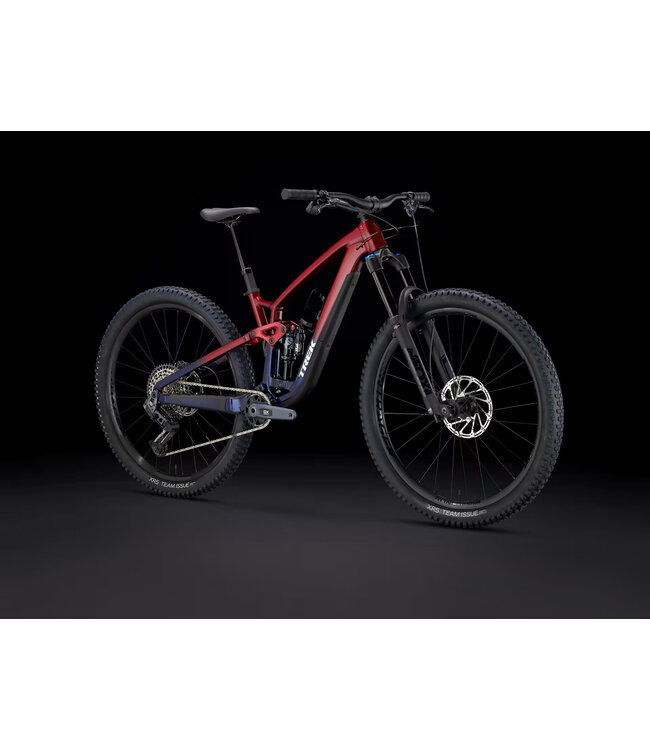

Fuel EX 8 GX AXS is an evolved trail bike, dialed for riders who chase down rowdy descents, and want a bike that's happy to pedal back to the top and do it again. The lightweight alloy frame pairs with a upgraded electronic wireless 12-speed SRAM GX Eagle transmission, while a 150mm FOX Rhythm fork cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that the come with the carbon model, but without the lofty price tag.Â
*Please note - spec applies to all sizes unless listed separately
- Frame
-
Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
- *Fork
-
Size:Â XS , S
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
Size:Â S , M , ML , L , XL , XXL
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
- Shock
-
Fox Performance Float X, 2-position damper, 185mm x 55mm
- *Wheel front
-
Size:Â S , M , ML , L , XL , XXL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
- *Wheel rear
-
Size:Â S , M , ML , L , XL , XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
- Skewer rear
-
- *Tire
-
Size:Â S , M , ML , L , XL , XXL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-

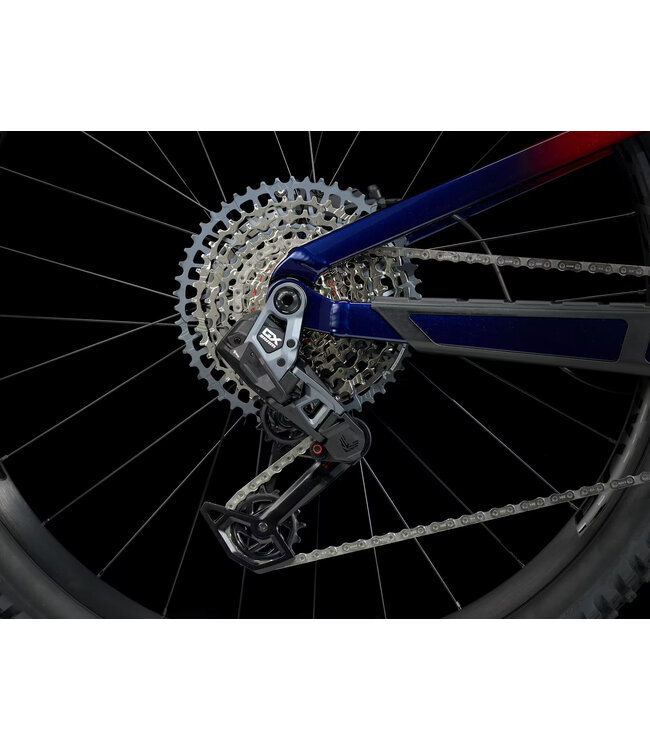

SRAM GX Eagle AXS, T-Type
- Crank
-
SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1275, T-Type,10-52, 12 speed
- Chain
-
SRAM GX Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 28T
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
- *Handlebar
-
Size:Â M , ML , L , XL , XXL
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
- Grips
-
- *Stem
-
- Headset
-
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- *Brake rotor
-
Size:Â XS , S , M , ML , L , XL , XXL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size:Â XS , S , M , ML , L , XL , XXL
SRAM CenterLine, 6-bolt, round edge, 200mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
- Weight
- M - 15.88 kg / 35.01 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
