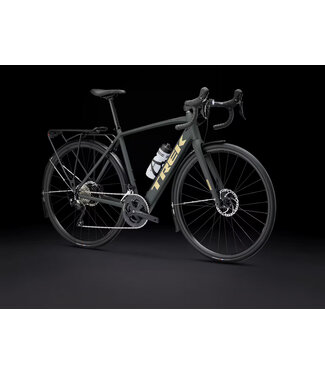

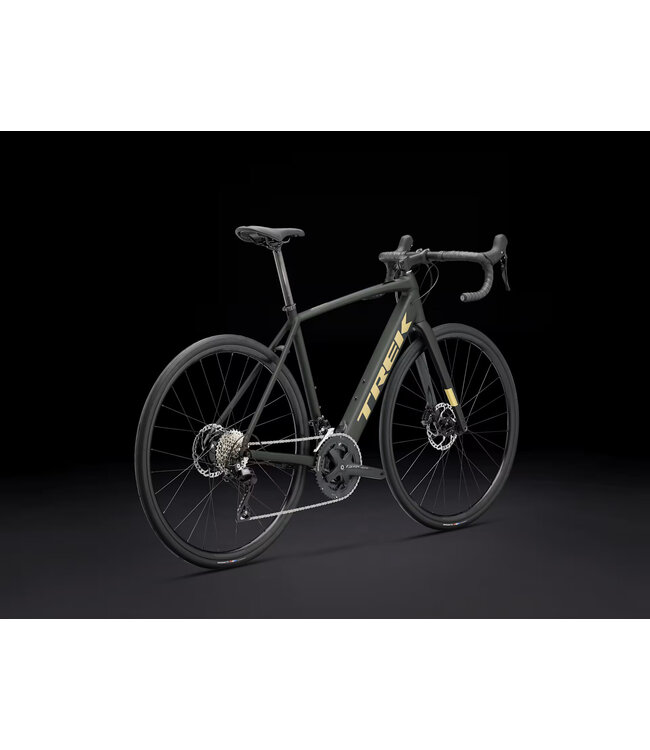

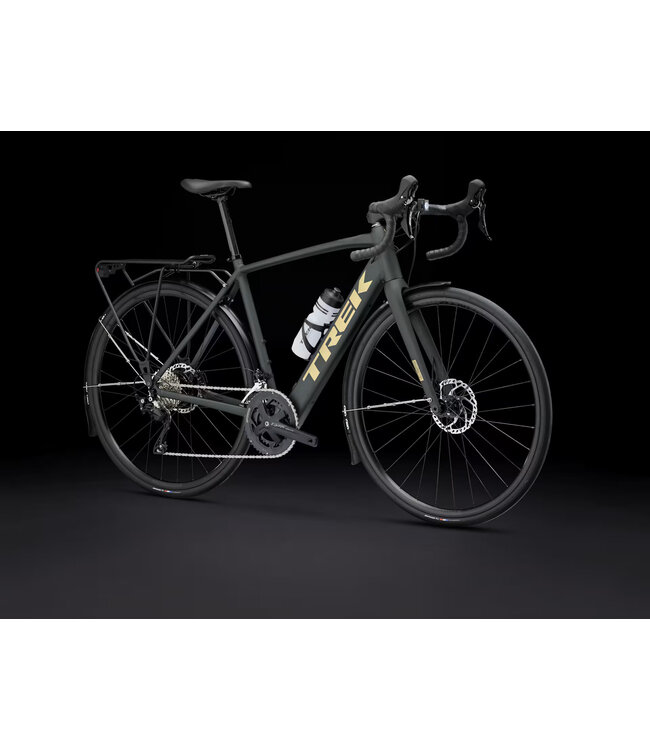

Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.
*Please note - spec applies to all sizes unless listed separately
- Frame
-
100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
- Fork
-
- Weight
- 56 - 14.10 kg / 31.09 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
250Wh, integrated in down tube
- Charger
-
- Motor
-
Hyena hub drive motor, 40Nm, 250W
- Shifter
-
Shimano 105 R7120, 12 speed
- Front derailleur
-
Shimano 105 R7100, 31.8mm clamp, down swing
- Rear derailleur
-
Shimano 105 R7100, 36T max cog
- *Crank
-
Size:Â 49
FSA Vero Pro, 50/34, 165mm length
Size:Â 52
FSA Vero Pro, 50/34, 170mm length
Size:Â 54, 56
FSA Vero Pro, 50/34, 172.5mm length
Size:Â 58, 61
FSA Vero Pro, 50/34, 175mm length
- Bottom bracket
-
- Cassette
-
Shimano 105 7101, 11-34, 12 speed
- Chain
-
Shimano SLX M7100, 12 speed
- Max chainring size
- 2x: 50/34
- Hub front
-
Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
- Skewer front
-
- Rim
-
- Tire
-
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
- Max tire size
- 38mm without fenders, 32mm with fenders
- Saddle
-
Bontrager Verse P3, steel rails
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size:Â 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
- Headset
-
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
- Brake rotor
-
Shimano RT66, 6-bolt, 160mm
- Rotor size
- Max brake rotor sizes: 160mm front & rear
